red
V-RAPTOR
€350.00 + iva (necessaria assicurazione)
Videocamera – Cinecamera – Cinécaméra – Cámara de cine

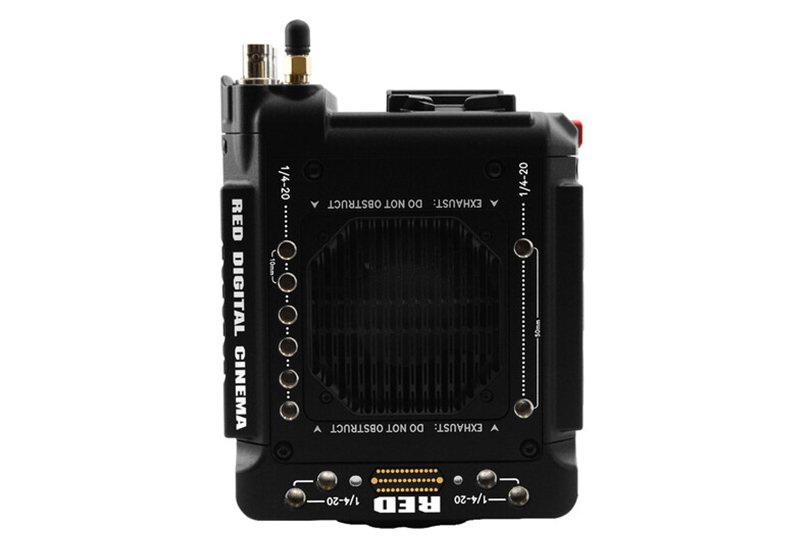

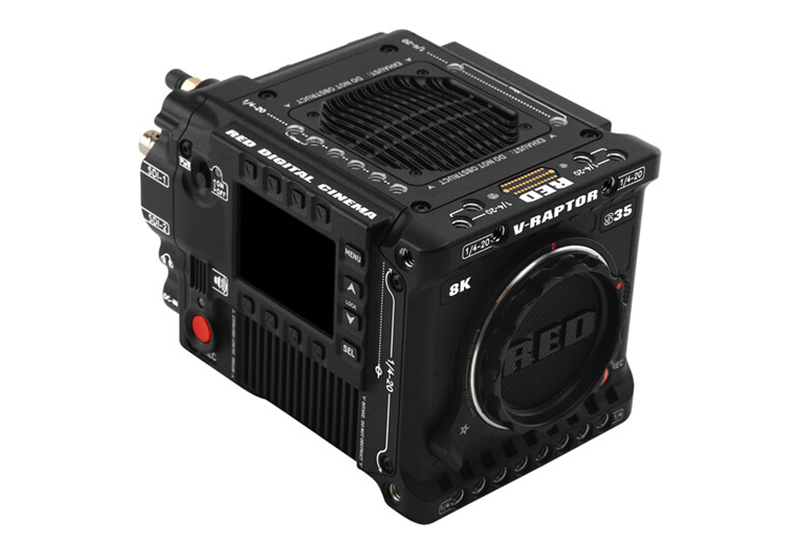

Compatta, veloce e full-frame: la fotocamera V-RAPTOR 8K VV nera è un’introduzione straordinaria alla nuova piattaforma DSMC3 di RED DIGITAL CINEMA. Di dimensioni solo leggermente più grandi della KOMODO ma dotata di un nuovo sensore, la V-RAPTOR offre acquisizione multiformato in 8K VV, 6K Super35, 4K, 3K Super16 e opzioni anamorfiche. Questa versatilità ti consente di adattare il tuo formato da progetto a progetto per adattarlo a una varietà di obiettivi cinematografici o fotografici. L’attacco per obiettivo RF della V-RAPTOR può essere utilizzato con numerosi adattatori per obiettivo ed è dotato di un anello di bloccaggio che fornisce ulteriore sicurezza per l’uso con obiettivi più pesanti e un’acquisizione stabile e ad ampia apertura.
La camera viene noleggiata solo se assicurata dal cliente. Se non si è in possesso di assicurazione, il costo della stipula fatta da Ouvert è di: 1 giorno 50 euro + iva, 2 giorni 70 euro + iva, da 3 a 7 giorni 90 euro + iva.
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
ACCESSORI EXTRA
| Imaging | |
| Lens Mount | Canon RF |
| Lens Communication | Yes |
| Sensor Resolution | Effective: 35.4 Megapixel (8192 x 4320) |
| Image Sensor | 40.96 x 21.6 mm (Full-Frame) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | None |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Advertised Dynamic Range | 17 Stops |
| Video Capture | |
| Internal Recording Modes | REDCODE HQ |
| 8192 x 4320 up to 59.94 fps | |
| 6144 x 3240 up to 96 fps | |
| 4096 x 2160 up to 240 fps | |
| 2048 x 1080 up to 480 fps | |
| REDCODE MQ | |
| 8192 x 4320 up to 59.94 fps | |
| 6144 x 3240 up to 160 fps | |
| 4096 x 2160 up to 240 fps | |
| 2048 x 1080 up to 480 fps | |
| REDCODE LQ | |
| 8192 x 4320 up to 120 fps | |
| 6144 x 3240 up to 160 fps | |
| 4096 x 2160 up to 240 fps | |
| 2048 x 1080 up to 480 fps | |
| REDCODE RAW | |
| 8192 x 4320 up to 120 fps | |
| 8192 x 3456 up to 150 fps | |
| 7168 x 3780 up to 140 fps | |
| 7168 x 3024 up to 175 fps | |
| 6144 x 3240 up to 160 fps | |
| 6144 x 2592 up to 200 fps | |
| 5120 x 2700 up to 192 fps | |
| 5120 x 2160 up to 240 fps | |
| 4096 x 2160 up to 240 fps | |
| 4096 x 1728 up to 300 fps | |
| 3072 x 1620 up to 320 fps | |
| 3072 x 1296 up to 400 fps | |
| 2048 x 1080 up to 480 fps | |
| 2048 x 864 up to 600 fps | |
| External Recording Modes | SDI/BNC |
| 4096 x 2160 at 24.00/25/30.00/60.00 fps | |
| 2048 x 1080p at 24.00/25/30.00/60.00 fps | |
| Sensor Crop Modes | Super35 / APS-C |
| Super16 | |
| Sensor Crop While Recording | 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw |
| 8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
| 7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| 7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
| 6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| 6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic | |
| 5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| 4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| 3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| 2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | RED IPP2 |
| Built-In Microphone Type | Mono |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | None |
| Interface | |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
| Video I/O | 2 x BNC (12G-SDI) Output |
| Audio I/O | 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input |
| 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output | |
| Power I/O | 1 x LEMO 6-Pin (11 to 17VDC) Input |
| Other I/O | 1 x USB-C Control/Data/Video |
| 1 x 9-Pin Control/Data Input/Output | |
| Wireless | 2.4 / 5 GHz Wi-Fi Video Output |
| Mobile App Compatible | No |
| *As of June, 2023: Check with manufacturer for the most up-to-date compatibility | |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Monitor | |
| Size | 2.4″ |
| Display Type | Fixed LCD |
| Viewfinder | |
| Type | Optional, Not Included |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Storage Humidity | 0 to 85% |
| General | |
| Battery Type | Micro V-Mount |
| Tripod Mounting Thread | 1/4″-20 Female (Bottom) |
| 3/8″-16 Female (Bottom) | |
| Accessory Mount | 28 x 1/4″-20 Female |
| Netflix Approved | Yes |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 6.1 x 4.3 x 4.3″ / 155.5 x 108 x 108 mm |
| Weight | 4 lb / 1.8 kg |
- V-Raptor
- 2x Scheda 660GB CFexpress B RED
- Lettore CFexpress B
- Alimentatore RED
- Cavo alimentazione D-Tap
- BasePlate 15” con rosette
- 2x Maniglia laterali RED
- Maniglia superiore
- Mini cheeseplate rode
- Valigia di trasporto
Kit Monitor RED: +50€+iva
Monitor RED – DSMC3 Touch – SmallHD 7” + RMI cable
Kit Viewfinder: +25€+iva
Viewfinder Z-cam + alimentazione EVF d-tap
2x Antenne Viewfinder
Supporto braccetto per EVF
Kit Alimentazione: +25€+iva
V-mount Battery Plate (D-Tap, type-C, 3x lemo 2pin 14.8V)
i/o Expander (Genlock, Ctrl, TC, R/S, lemo 2pin 14.8V)
