smallhd

Monitor 1303 13″

€70.00 + iva

Monitor regia – Control monitor – Moniteur de contrôle – Monitor de control

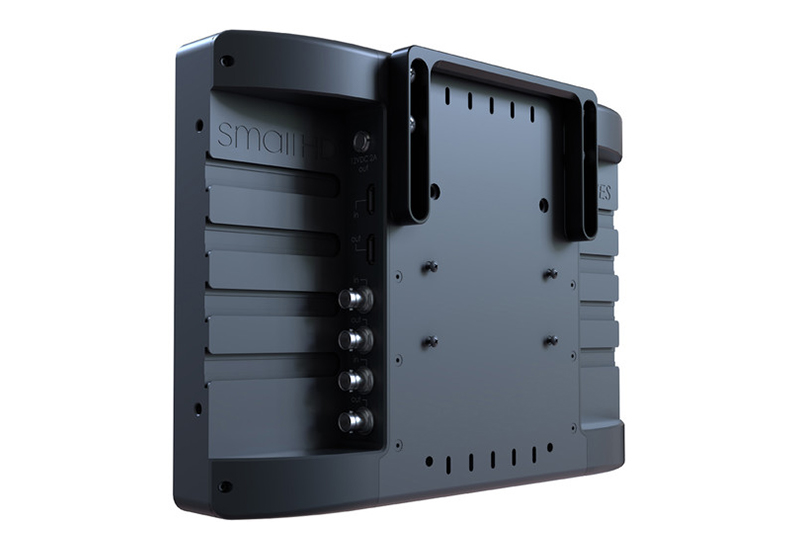

Speciale per NAB 2018, il kit monitor di produzione SmallHD 1303 HDR da 13″ viene fornito con tutto il necessario per impostare uno schermo di visualizzazione HDR in studio o sul campo. Oltre al monitor da 13″, questo kit include cavi SDI, un accessorio per accessori RapidRail, supporto per supporto a C, protezioni per schermo standard e opache, un parasole e il kit di alimentazione con supporto Gold con un piatto per formaggi. Vedi sotto per ulteriori informazioni sui singoli articoli inclusi in questo kit.

SPECIFICHE TECNICHE

CONTENUTO DEL PACCHETTO

Display
Panel Type IPS-Type LCD
Display Size 13.00″ / 33.0 cm
Screen Area 11.59 x 6.52″ / 29.44 x 16.56 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Viewing Angle 178°
Touchscreen No
Maximum Brightness 1500 nits / cd/m2
Contrast Ratio 1140:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Yes
Pixels Per Inch (ppi) 170 ppi
Color Gamut 100% Rec. 709
Image Controls False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform
Inputs / Outputs
Video I/O 1 x HDMI Input
1 x HDMI Output
2 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
Embedded Audio HDMI
SDI
Audio I/O 1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x XLR 4-Pin (12 VDC) Input
1 x LEMO 2-Pin (4 A / 12 VDC) Input
Other I/O 2 x USB-A 2.0 Input
Media/Memory Card Slot None
Wi-Fi None
Bluetooth None
Mobile App Compatible No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 100/50
480p: 120/119.88/100/60/59.94
SDI (10-Bit 4:2:2)
1080p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576i: 25
480i: 59.94
Power
AC Input Power 110 to 240 VAC, 50 / 60 Hz at 6 to 15 A
DC Input Power 12 to 34 VDC at 18 A
Power Consumption 25 W (Typical)
39 W (Maximum)
Mounting
Mounting 6 x 1/4″-20 Female
Environmental
Operating Temperature 32 to 100°F / 0 to 37.8°C
Storage Temperature 33 to 115°F / 0 to 46°C
General
Dimensions 13 x 9 x 2.88″ / 33 x 22.9 x 7.32 cm
Weight 9.0 lb / 4.1 kg
  • Monitor 1303 13″
  • Piastra per attacco stativo e da tavolo
  • Alimentatore
  • Cavo alimentazione D-tap
  • Paraluce
  • Valigia di trasporto
