dzofilm
LINGLUNG M4/3 T2.9 set
€70.00/120.00 + iva
Ottiche – camera lenses – Objectifs de caméra – Lentes de camara
Ottiche:
MFT: 10-24mm T2.9 │ 20-70mm T2.9

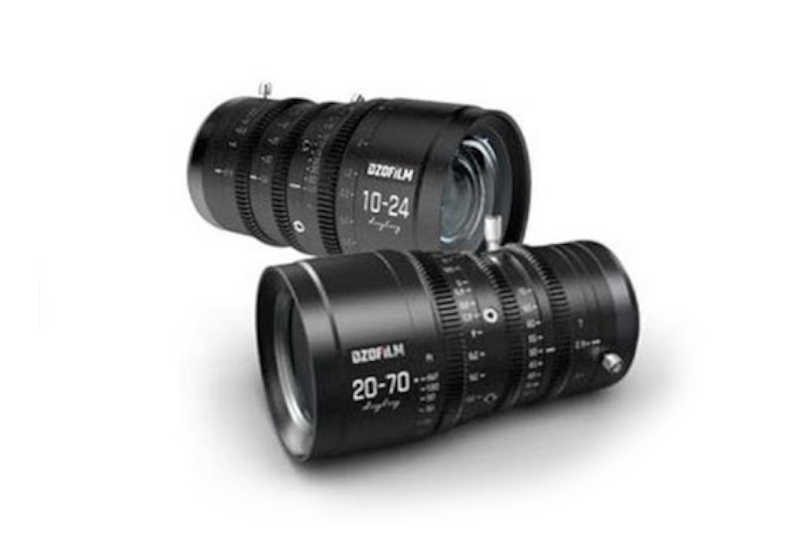

Dotato di due lenti parafocali di dimensioni quasi identiche, questo pacchetto di lenti cinematografiche parfocali MFT di DZOFilm offre un flusso di lavoro flessibile e coerente con lunghezze focali da un grandangolo da 10 mm a 70 mm. Sono inclusi un obiettivo cinematografico da 10-24 mm e uno da 20-70 mm per fotocamere con attacco MFT. Entrambi sono obiettivi parafocali, progettati per mantenere la messa a fuoco su tutta la gamma di zoom. Entrambi presentano un’apertura T2.9, un’iride a 12 lamelle e una respirazione minima. Hanno una rotazione della messa a fuoco di 270° e una scala di messa a fuoco su due lati con misurazioni imperiali e metriche. Gli obiettivi sono progettati con un resistente alloggiamento interamente in metallo con un diametro anteriore di 80 mm e una filettatura del filtro di 77 mm. Anche gli ingranaggi di messa a fuoco, diaframma e zoom sono costantemente 0,8 MOD/32 passi. La regolazione del back focus di 19,2 mm consente uno scambio efficiente tra diverse fotocamere.
Ottica singola: €70.00
Set: €120.00
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
| DZOFilm MFT 10-24mm T2.9 Parfocal Cine Lens | |
| Focal Length | 10 to 24mm |
| Lens Mount | Micro Four Thirds |
| Lens Format Coverage | MFT |
| Image Circle | 21.6 mm |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Diagonal Angle of View | MFT: 92.5 to 49.3° |
| Horizontal Angle of View | MFT: 79.7 to 40.3° |
| Minimum Focus Distance | From : 19.7″ / 50 cm |
| Diaphragm Blades | 12 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
| Iris: 0.8 MOD / 32 Pitch | |
| Zoom: 0.8 MOD / 32 Pitch | |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Metric |
| Focus Rotation | 270° |
| Iris Rotation | 70° |
| Zoom Rotation | 100° |
| Zoom Ratio | 2.4x |
| Image Stabilization | No |
| Length | 6.11″ / 155.1 mm |
| Weight | 2.43 lb / 1.1 kg |
| DZOFilm MFT 20-70mm T2.9 Parfocal Cine Lens | |
| Focal Length | 20 to 70mm |
| Lens Mount | Micro Four Thirds |
| Lens Format Coverage | MFT |
| Image Circle | 21.6 mm |
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Diagonal Angle of View | MFT: 57.6 to 17.9° |
| Horizontal Angle of View | MFT: 47.5 to 14.3° |
| Minimum Focus Distance | From : 31.1″ / 79 cm |
| Diaphragm Blades | 12 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
| Iris: 0.8 MOD / 32 Pitch | |
| Zoom: 0.8 MOD / 32 Pitch | |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Metric |
| Focus Rotation | 270° |
| Iris Rotation | 70° |
| Zoom Rotation | 100° |
| Zoom Ratio | 3.5x |
| Image Stabilization | No |
| Length | 6.2″ / 157.5 mm |
| Weight | 2.43 lb / 1.1 kg |
- MFT 10-24mm T2.9 Parfocal Cine Lens
- MFT 20-70mm T2.9 Parfocal Cine Lens
- Tappo anteriore
- Tappo posteriore
- Valigia di trasporto
