RECORDER H6 Kit

€25.00 + iva

Registratore – Recorder – Enregistreur – Grabadora

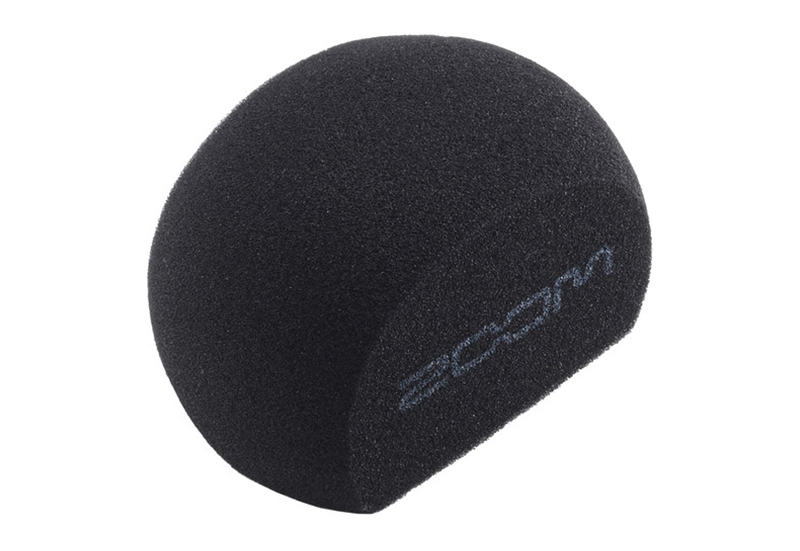

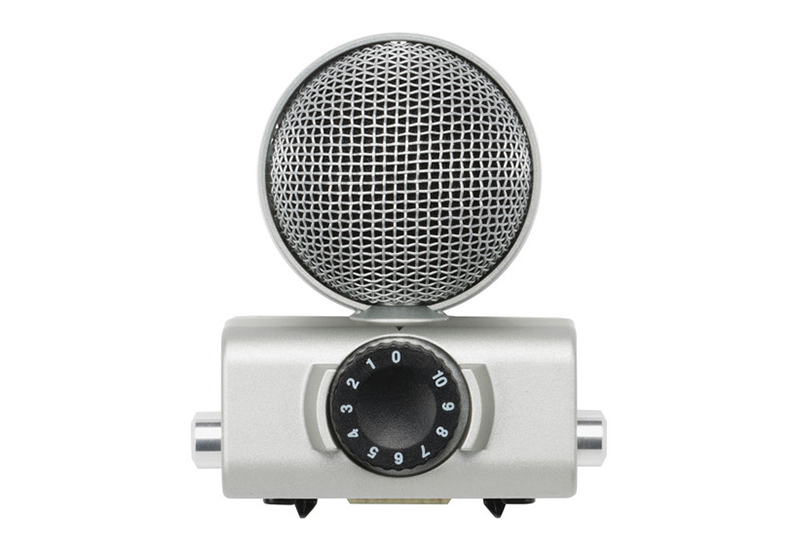

L’H6 è un registratore portatile e un’interfaccia audio USB dotato di un sistema di microfoni intercambiabili. Il registratore viene fornito con moduli microfono XY e mid-side, antivento in schiuma, scheda SD da 2 GB, quattro batterie AA, cavo USB, Cubase LE e una custodia rigida per il trasporto. È possibile acquistare allegati moduli opzionali per funzionalità estese.

Vedi l'articolo sul sito del produttore

SPECIFICHE TECNICHE

CONTENUTO DEL PACCHETTO

ACCESSORI EXTRA

Portable Recorder
Number of Tracks	WAV: 6
	MP3: 2
Maximum Sampling Rate	96 kHz / 24-Bit
Microphone	Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
Built-In Speaker	Yes, 400 mW Mono
Display	2″ / 5.08 cm Color LCD (Backlit)
Memory Card Support	SD (16 MB to 2 GB)
	SDHC (4 to 32 GB)
	SDXC (64 to 128 GB)
Internal Storage	None
Recording
Audio File Formats	BWF, MP3, WAV
Sample Rates	WAV:
	44.1 / 48 / 96 kHz
	MP3:
	44.1 kHz
Bit Depth	16 / 24-Bit
Bit Rates	48 to 320 kb/s
Signal Processing & FX	Compressor, Limiter, Low-Cut Filter, Pitch Control
Timecode Support	No
Recording Time	WAV 44.1 kHz/16-Bit:
	1 Hr 34 Mins per GB (Stereo)
	MP3 128 kb/s:
	17 Hrs 21.5 Mins per GB (Stereo)
Connectivity
Analog I/O	4 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Line/Mic Input
	1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line/Mic Input
	1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output
	1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output
Digital I/O	None
Phantom Power	+12 / 24 / 48 V (Selectable on Individual Inputs)
Plug-In Power	Yes, 2.5 V
System Connection	1 x Mini-USB (2.0)
Performance
Gain/Trim Range	X/Y Mic Capsule:
	Up to +46.5 dB
	1/8″ Inputs:
	Up to +46.5 dB
	Mic/Line Inputs:
	Up to +55.5 dB
Max Input Level	Inputs:
	+22 dBu (Pad On)
Max Output Level	Line Outputs:
	-10 dBu
Headphone Output Power	20 mW per Channel into 32 Ohms
Impedance	1/8″ / 3.5 mm Inputs:
	2 Kilohms
	Mic/Line Inputs:
	1.8 Kilohms
EIN	≤-120 dBu
Microphone Sensitivity	-41 dB/Pa (X/Y)
Microphone Max SPL	136 dB SPL (X/Y)
Power
Power Options	Battery, USB Bus Power, AC/DC Power Adapter
Battery Type	4 x AA (Not Included)
Approximate Battery Life	WAV 44.1 kHz/16-Bit:
	21 Hours (Alkaline, 2 Channels)
	WAV 96 kHz/24-Bit:
	9.75 Hours (Alkaline, All Channels)
AC/DC Power Adapter	5 VDC at 1 A (Not Included)
Physical
Mounting Options	1/4″-20 Female
Dimensions	3.1 x 1.9 x 6″ / 77.8 x 47.8 x 152.8 mm (Recorder)
	3.1 x 1.8 x 2.4″ / 78.9 x 45.2 x 60.2 mm (X/Y Mic)
Weight	9.9 oz / 280 g (Recorder)
	4.6 oz / 130 g (X/Y Mic)
