GHOST EYE 150M
€60.00 + iva
Sistema video wireless – Video wireless system – Système vidéo sans fil – Sistema de vídeo inalámbrico
Il trasmettitore video HDMI e SDI wireless Ghost-Eye da 150 m di Cinegears trasmette video e audio HD non compressi fino a una distanza di 150m, consentendo di riprendere sia in situazioni interne che esterne. Con ingressi e uscite 3G e HDMI e dieci frequenze di trasmissione utilizzabili (utilizzandone fino a quattro contemporaneamente), è possibile utilizzare la trasmissione video per applicazioni professionali. Richiede il ricevitore video wireless Ghost-Eye 150 m all’estremità ricevente.
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
| Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M | |
| Interface | Input: |
| 1 x SDI BNC, female | |
| 1 x HDMI Type A, female | |
| 2 x antenna ports (PR-SMA male) | |
| Transmission Distance | 985 ft (300 m) line-of-sight |
| 492 ft (150 m) minimum line-of-sight ensured | |
| Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual): |
| 1080p: 60/59.94/50/30/29.9/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 625i: 60/59.94/50 | |
| 525i: 60/59.94/50 | |
| HDMI Type A: | |
| 1080p: 60/59.94/50/30/29.9/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 525i: 60/59.94/50 | |
| SMPTE: | |
| 259/274/292/296/372/424/425 | |
| Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 |
| Audio Input Format | SDI embedded 2-channel 24-bit/48 kHz |
| Frequency Band | 5.1 to 5.9 GHz |
| Modulation Mode | OFDM 16QAM |
| Transmission Power | <18 dBm |
| Occupied Bandwidth | 40 MHz |
| Encryption | AES-128 |
| Housing | Plastic |
| Power | Input Voltage Range: 6.5 to 16.8 VDC |
| Consumption: 5.5 W | |
| Compliance | FCC, CE, RoHS |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 4.5 x 2.6 x 0.9″ (11.5 x 6.7 x 2.3 cm) |
| Weight | 0.6 lb (270 g) |

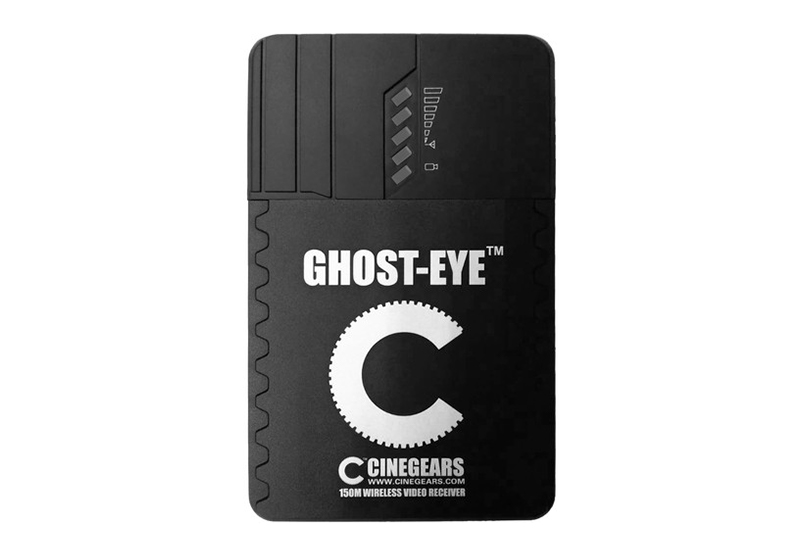

| Ghost-Eye Wireless HDMI & SDI Video Receiver 150M | |
| Interface | Output: |
| 1 x SDI BNC, female | |
| 1 x HDMI Type-A, female | |
| 1 x SDI, loop-through out | |
| Transmission Distance | 985 ft (300 m) line-of-sight |
| 492 ft (150 m) minimum line-of-sight ensured | |
| Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual): |
| 1080p: 60/59.94/50/30/29.9/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 625i: 60/59.94/50 | |
| 525i: 60/59.94/50 | |
| HDMI Type-A: | |
| 1080p: 60/59.94/50/30/29.9/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 625i: 60/59.94/50 | |
| 525i: 60/59.94/50 | |
| SMPTE: | |
| 259/274/292/296/372/424/425 | |
| Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 |
| Audio Output Format | SDI-embedded 2-channel 24-bit/48 kHz |
| Frequency Band | 5.1 – 5.9 GHz |
| Modulation Mode | OFDM 16-QAM |
| Receiver Sensitivity | -75 dBm |
| Occupied Bandwidth | 40 MHz |
| Encryption | AES-128 |
| Housing | Plastic |
| Power | Input Voltage Range: 6.5 – 16.8 VDC |
| Consumption: 6.5 W | |
| Compliance | FCC, CE, RoHS |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 6 x 3.7 x 0.9″ (15.2 x 9.5 x 2.3 cm) |
| Weight | 0.8 lb (355 g) |
- Ghost-Eye Wireless 150M HDMI & SDI Video Transmitter
- Ghost-Eye Wireless 150M HDMI & SDI Video Receiver
- Mini clamp
- 2x Braccetto piccolo
- 2x Antenna
- 2x Cavo D-tap/lemo
- Cacciavite
- Valigetta di trasporto
