dji

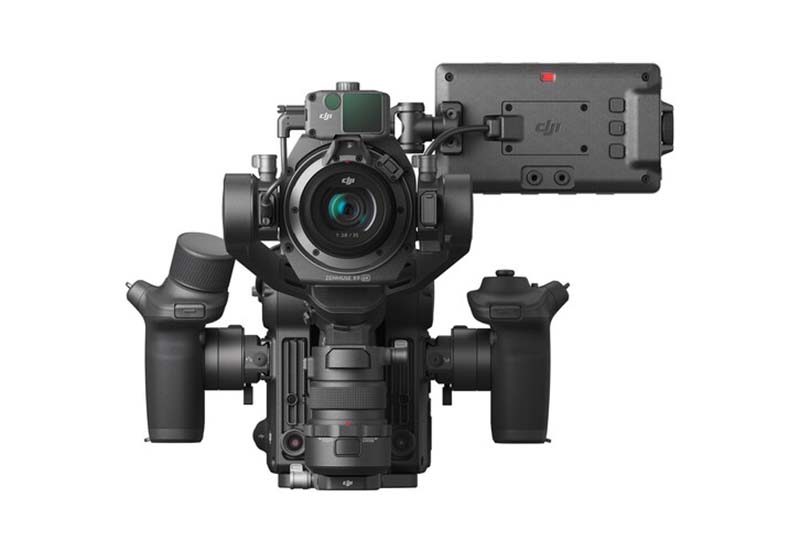

RONIN-4D
€200.00 + iva
Videocamera – Cinecamera – Cinécaméra – Cámara de cine
Disponibile negli attacchi PL, E ed DL
Progettato sia per l’uso solista da parte di creatori indipendenti che per l’acquisizione dinamica di video professionali, il Ronin 4D di DJI è un’innovativa soluzione camera/gimbal all-in-one. La designazione “4D” si riferisce alla stabilizzazione dell’asse Z (verticale) integrata nella camera X9-6K e alla stabilizzazione del gimbal a tre assi. Costruito in fibra di carbonio leggera e una lega di alluminio/magnesio, questo sistema è ideale per creatori di contenuti indipendenti, registi indipendenti e operatori video di eventi. L’acquisizione full-frame a velocità fino a 6K60 in Apple ProRes 422 HQ e il sistema di elaborazione delle immagini CineCore 3.0 di Ronin con supporto del flusso di lavoro ACES si adatta anche alla 4D come camera “B” o seconda unità per produzioni più grandi in stile cinematografico.
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
| Imaging | |
| Lens Mount | DX |
| Sensor Resolution | Effective: 24.1 Megapixel |
| Image Sensor | Full-Frame CMOS |
| Image Stabilization | Integrated Gimbal, 4-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters |
| Internal Filter Holder | Yes |
| Capture Type | Video Only |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/24 Second |
| ISO Sensitivity Range | 200 to 12,800 |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2000 to 11,000K |
| Presets: Manual | |
| Gimbal | |
| Rotation Range | Controllable Range |
| Yaw (Pan): 285° | |
| Roll: 70° (-35 to 35°) | |
| Pitch (Tilt): 210° (-55 to 155°) | |
| Mechanical Range | |
| Yaw (Pan): 330° | |
| Roll: 320° (-90 to 230°) | |
| Pitch (Tilt): 250° (-75 to 175°) | |
| Z-Axis Adjustment Range | 130 mm |
| Follow Speed | Using DJI Master Wheels or Pro Force: |
| Pan/Tilt/Roll: 360°/s | |
| Using Ronin 4D Handgrip: | |
| Pan/Tilt/Roll: 120°/s | |
| Load Capacity | 2.1 lb / 960 g |
| Video Capture | |
| Internal Recording Modes | ProRes 422 HQ/ProRes 422LT |
| 6008 x 3168 at 23.98/24.00/25/29.97/50/59.94 fps | |
| 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/72/96/100/120 fps | |
| 2048 x 1080 at 23.98/24.00/25/29.97/48.00/50/59.94/72/96/100/120 fps | |
| H.264 4:2:0 10-Bit | |
| 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/72/96/100/120 fps | |
| 2048 x 1080 at 23.98/24.00/25/29.97/48.00/50/59.94/72/100/120 fps | |
| External Recording Modes | USB |
| 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps | |
| 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps | |
| Gamma Curve | HDR-HLG, Rec709 |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 48-Bit LPCM Audio |
| IP Streaming | None |
| Still Image Capture | |
| Image File Format | Raw |
| Interface | |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) [1 TB Maximum] |
| Internal Memory | 1 TB |
| Video I/O | 1 x HDMI 1.4 Output |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input |
| 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output | |
| Power I/O | 1 x Barrel (12 to 30VDC) Input |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output |
| 1 x Proprietary Monitor Output | |
| Wireless | Wi-Fi |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Monitor | |
| Display Size | 5.5″ |
| Resolution | 1920 x 1080 |
| Display Type | Tilting Touchscreen LCD |
| Viewfinder | |
| Type | Optional, Not Included |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Environmental | |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| General | |
| Battery Type | DJI TB50 |
| Material of Construction | Aluminum, Carbon Fiber, Magnesium Alloy |
| Dimensions (W x H x D) | 12.2 x 11.4 x 10.9″ / 309 x 290 x 277 mm (With Protrusions) |
| 9.3 x 6.3 x 4.5″ / 235 x 160 x 115 mm (Without Protrusions) | |
| Weight | 10.3 lb / 4.67 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder) |
| 3.2 lb / 1.45 kg (Body Only) | |
| 2.29 lb / 1.04 kg (Gimbal) |
- Ronin 4D
- Maniglia destra
- Maniglia sinistra
- Alimentatore
- 4x Batteria
- Caricabatterie
- SSD 1T + cavo USB-C / Type-C
- SSD Plate
- Motore del fuoco + cavo alimentazione motore
- Sistema Lidar Autofocus + cavo alimentazione lidar
- Contrappeso
- Valigia di trasporto
