dzofilm
Arles Prime FF Cine PL set
€45.00/270.00 + iva
Ottiche – Camera lenses – Objectifs de caméra – Lentes de camara
Ottiche:
Full Frame: 14mm T1.9 │ 25mm T1.4 │ 35mm T1.4 │ 50mm T1.4 │ 75mm T1.4 │ 100mm T1.4 │ 180mm T2.4
Questo set di lenti DZOFilm Arles FF/VV Prime Cine include sette lunghezze focali comunemente utilizzate per la maggior parte dei casi. In questo set compatibile con PL full-frame sono inclusi obiettivi da 14, 25, 35, 50, 75, 100 e 180 mm. Tutti gli obiettivi condividono ingranaggi, lamelle dell’iride, diametri anteriori e intervalli di apertura simili per una facile commutazione.
Ottica singola: €45.00
Set: €270.00
SPECIFICHE TECNICHE
CONTENUTO DEL PACCHETTO
| 14 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.9-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 15 Elements in 12 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
109° / 72° / 116° |
| Close Focus (from sensor plane) |
0.28m |
| Iris Control | Manual (65°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm |
| Iris Blade | 16 |
| Filter Size | – |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1646g |
| 25 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 14 Elements in 12 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
80° / 47° / 87° |
| Close Focus (from sensor plane) |
0.35m |
| Iris Control | Manual (77°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1490g |
| 35 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 14 Elements in 12 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
61° / 34° / 67° |
| Close Focus (from sensor plane) |
0.35m |
| Iris Control | Manual (80°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1650g |
| 50 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 13 Elements in 11 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
45° / 25° / 50° |
| Close Focus (from sensor plane) |
0.5m |
| Iris Control | Manual (80°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1688g |
| 75 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 13 Elements in 9 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
30° / 16° / 34° |
| Close Focus (from sensor plane) |
0.75m |
| Iris Control | Manual (82°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1662g |
| 100 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T1.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 13 Elements in 8 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
23° / 12° / 26° |
| Close Focus (from sensor plane) |
0.9m |
| Iris Control | Manual (90°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
121mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1830g |
| 180 mm | |
| Colour | Black |
| Mount | PL |
| Aperture | T2.4-T22 |
| Image Circle | φ46.5mm (VV/FF) |
| Construction of Optics | 12 Elements in 9 Groups |
| Flange Distance | 52mm |
| Angle of view (diagonal, horizontal, vertical) |
13° / 7° / 15° |
| Close Focus (from sensor plane) |
1.07m |
| Iris Control | Manual (88°) |
| Focus Control | Manual (270°) |
| Front Dia. | φ95mm |
| Length (from lens front to flange plane) |
130mm PL |
| Iris Blade | 16 |
| Filter Size | M86 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | 1675g |
- DZOFilm Arles 14mm T1.9 FF
- DZOFilm Arles 25mm T1.4 FF
- DZOFilm Arles 35mm T1.4 FF
- DZOFilm Arles 50mm T1.4 FF

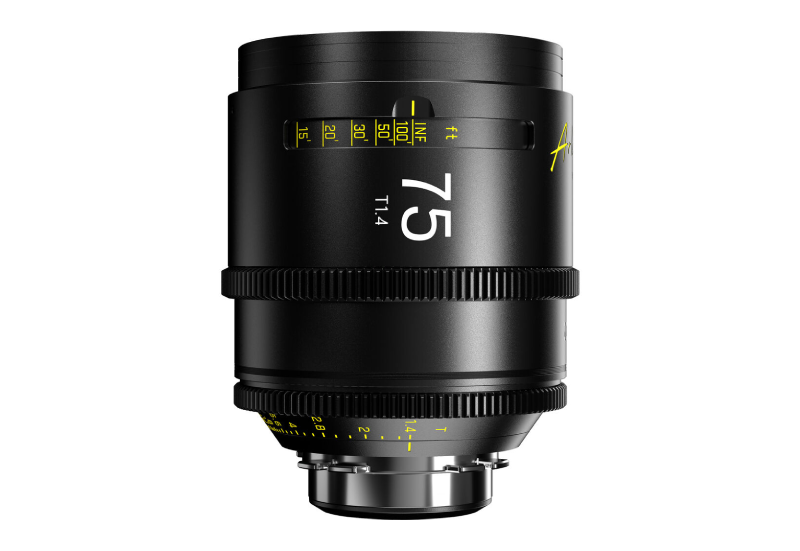

- DZOFilm Arles 75mm T1.4 FF
- DZOFilm Arles 100mm T1.4 FF
- DZOFilm Arles 180mm T2.4 FF
- Tappo anteriore
- Tappo posteriore
- Valigia di trasporto
